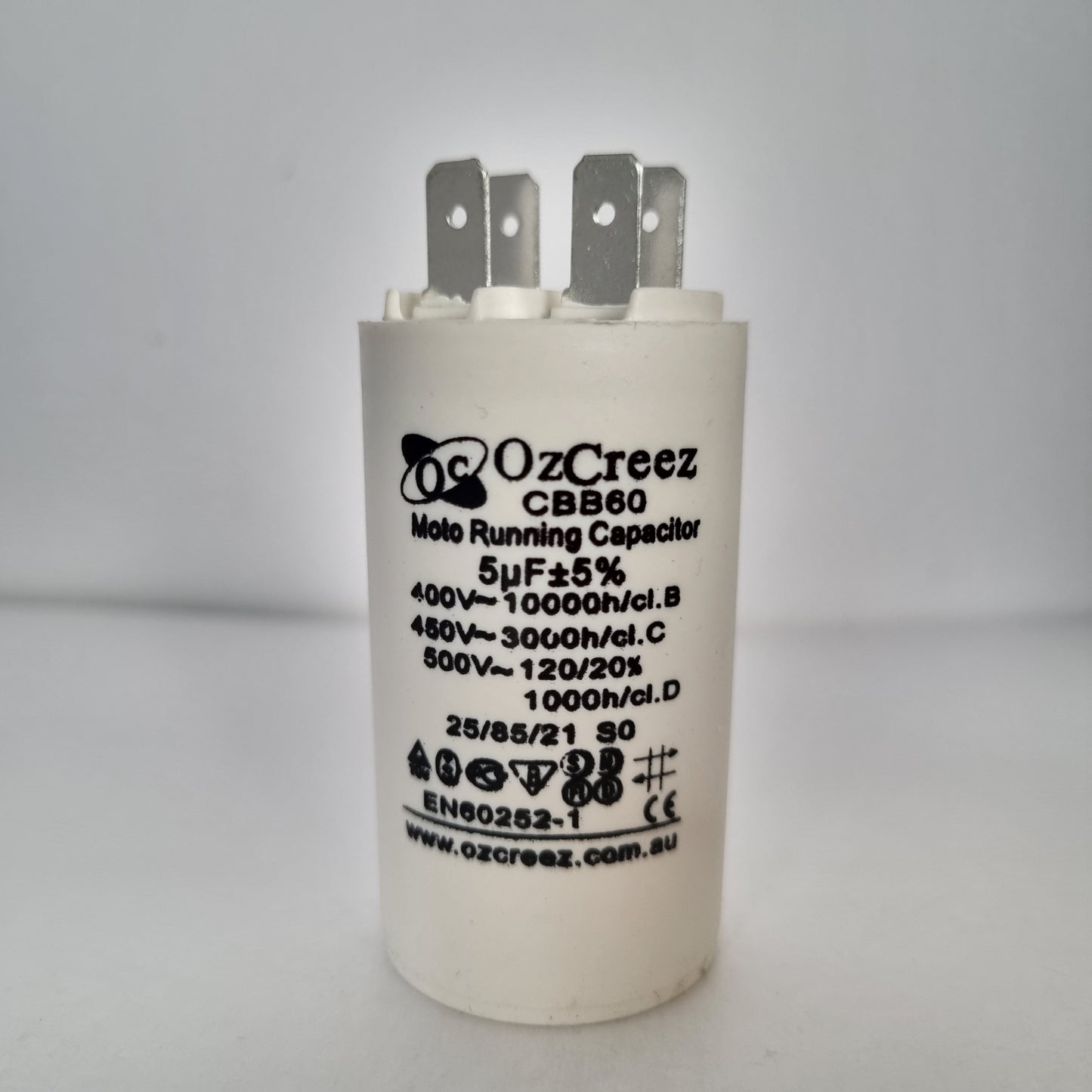

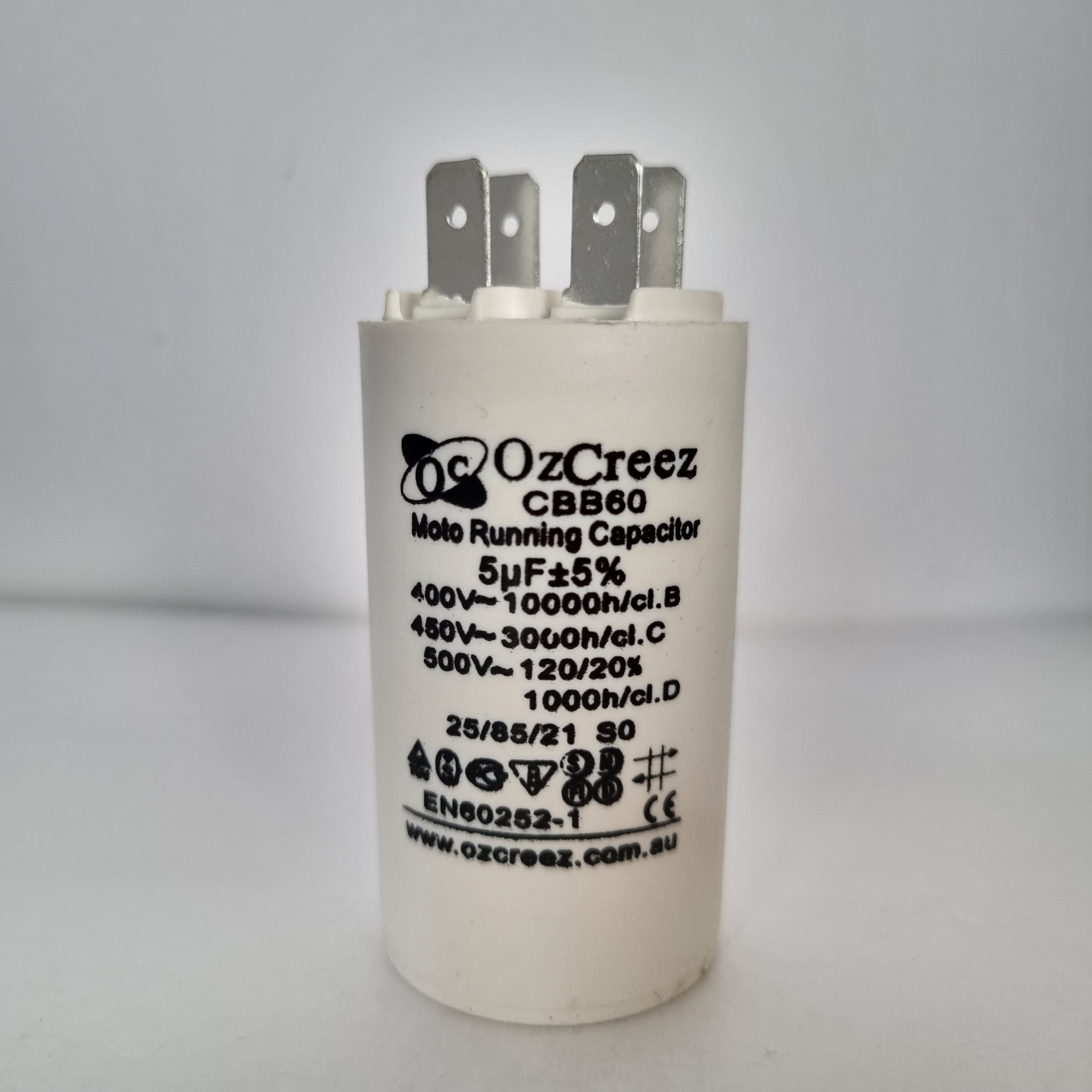

CBB60 5uF 450V 50/60Hz 4 Pin Motor Start Run Capacitor HVAC Washer Dryer Pump Compressor

  • Sale
  • Regular price $17.50
FREE Shipping Australia wide for order over $20 unless otherwise stated in the product description, GST not collected



CBB60 5uF 450V AC 50 / 60 Hz 4 Pin Air Conditioner Compressor, Washer, Elevators, Dryer, Appliances Motor Run Capacitor

Australian Brand Compliant with many International Quality and Safety Standards

This capacitor uses a metallized zinc-aluminium film with thick edges as electrodes and dielectrics. Its internal components are wrapped with flame retardant epoxy resin. The shape of this product is cylindrical plastic shell. Capacitor has good stability and moisture resistance.

Features:

  • Small volume, light weight, low loss, anti-overvoltage shock, excellent electrical performance and long service life.
  • Anti-explosion design, safe and reliable to use
  • Epoxy resin fully sealed structure
  • Small loss and high insulation resistance
  • Self-healing and stable performance
  • Resistant to impulse/inrush current.
  • Better heat dissipation effect and more stable performance under high temperature use

Applications:

This capacitor is used for AC motors to start and run and commonly used in Washing Machines, Exhaust Fans, Electric Water Pumps, Dryers, Elevators and other Electrical Appliances and Smaller single-phase motors to start and run

Specifications:

Brand: OzCreez
Model: CBB60 with Wires and option to select with and without 8mm Thread and bolt
International Quality and Safety Standard Compliant/Certifications: VDE,  B mark, ASE/SEV, CE, SEMKO, FIMKO, NEMKO, DEMKO...
Capacity: 5uF
Tolerance: ±5%
Insulation Resistance: ≥3000S (MΩ·μF)
Voltage: 450V AC
Frequency: 50Hz / 60Hz
Temperature/Climate Condition: -25°C/85°C/21

Precaution:

This capacitor does not distinguish between positive and negative poles, and can be wired in any order.

Package List:

1 x CBB60 5uF Capacitor



Capacitor Size/Dimensions Guide: allow ±1-2 mm tolerance
