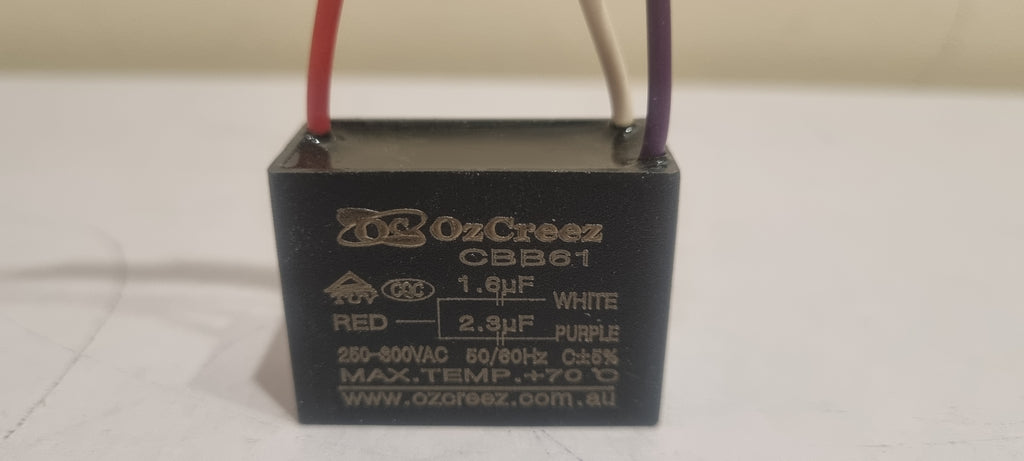

CBB61 1.6+2.3uF 3 Wires Fan Starting Capacitor For Ceiling Fan, Exhaust Fan, Dynamo-motor, Hood Fan Capacitor
Australian Brand Compliant with many International Quality and Safety Standards
Description & Features:
- Applications: Fan, Ceiling Fan
- This CBB61 is 1.6uf+2.3uf 3 WIRE capacitor ± 5%, 250V AC and 50/60Hz rating.
- Maximum operating temperature is +70°C.
- CBB61 capacitors control the start and stop mechanisms and fan speeds on many different types of ceiling fans motors using these types of capacitors.
Specifications:
- Model: CBB61
- Working Temperature: -25 to +70°C
- Working Frequency: 50/60Hz
- Rated Voltage: 250VAC
- Tolerance:±5%
- Rated Capacitance: 1.6uf+2.3uf
- Color: Black
- Cover Material: PF
- Type: Metalized Polypropylene Film Capacitor
- Wire: 3 wires
Dimensions:
- Length: 38mm
- Width: 28mm
- Height: 17mm
- Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
- Due to the difference between different monitors, the picture may not reflect the actual color of the item.
- Cables color of the item may not be the same as in photo here, but it will be marked on the capcitor.
Packing & Stock:
- Package Includes : CBB61 1.6 +2.3 Capacitor
- Fast Shipping from Melbourne
