CBB61 1uF+2uF, 1.5uF+2.5uF, 1.5uF+3uF Three 3 Wires and Five 5 Wires 250V/450V Capacitor for Fan / Celing Fan Regulator
$20.85 AUD
Tax/GST not collected.
FREE Shipping for order over $25. Otherwise: Normal: $7.5 and Express $15.
In stock!
Guaranteed superior quality and competitive price.
Fast and tracked shipping from Melbourne, Australia!
Support Local Pickup from Kilsyth Melbourne. Contact us!
- EXCLUSIVE DISCOUNT OFFERS
- Special multiple buy Discount up to 20% on Laptrays and Capacitors - our quality brand products!
- Check our Wholesale offers to save more!
Product description
3 Wires and 5 Wires Motor Run Capacitor CBB61 250V AC Fan 3 Speed Electric Fanners / Fan Regulator
NB: Voltage rating printed on Capacitor is 450VAC. It can be used to replace any capacitor with voltage rating in range 250VAC to 450 VAC Capacitor.
Features:
- Small case, small dissipation factor, small in heterent temperature rise.
- Fan Capacitor High insulation resistance.
- Good self-healing characteristic.
- Very good pressure resistance function.
- Fan capacitor Broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for AC fan, Ceiling Fan, centrifugal fan, cooling fan, axial fan, tube axial fan, centrifugal blower, fan guard, cross flow, industrial fans etc.
Specifications:
| Rated capacitance | Please see below |
| Tolerance | Âą 5% |
| Rated voltage | 250VAC |
| Rated frequency | 50/60Hz |
| Maximum permissible voltage Vmax | 1.1 x VR (VR=Rated voltage) |
| Maximum permissible current Imax | 1.3 x IR (IR=Rated current) |
| AC test voltage terminal to terminal | 2 x VR, 2s (routine test) |
| 2 x VR, 60s (type test) | |
| Dissipation factor tan δ | â¤0.002 (50Hz) |
| Climate types | 40/85/21, 25/70/21 |
| Reference standards | IEC 60252-1 |
Package Includes: (select capacitance value from menu)

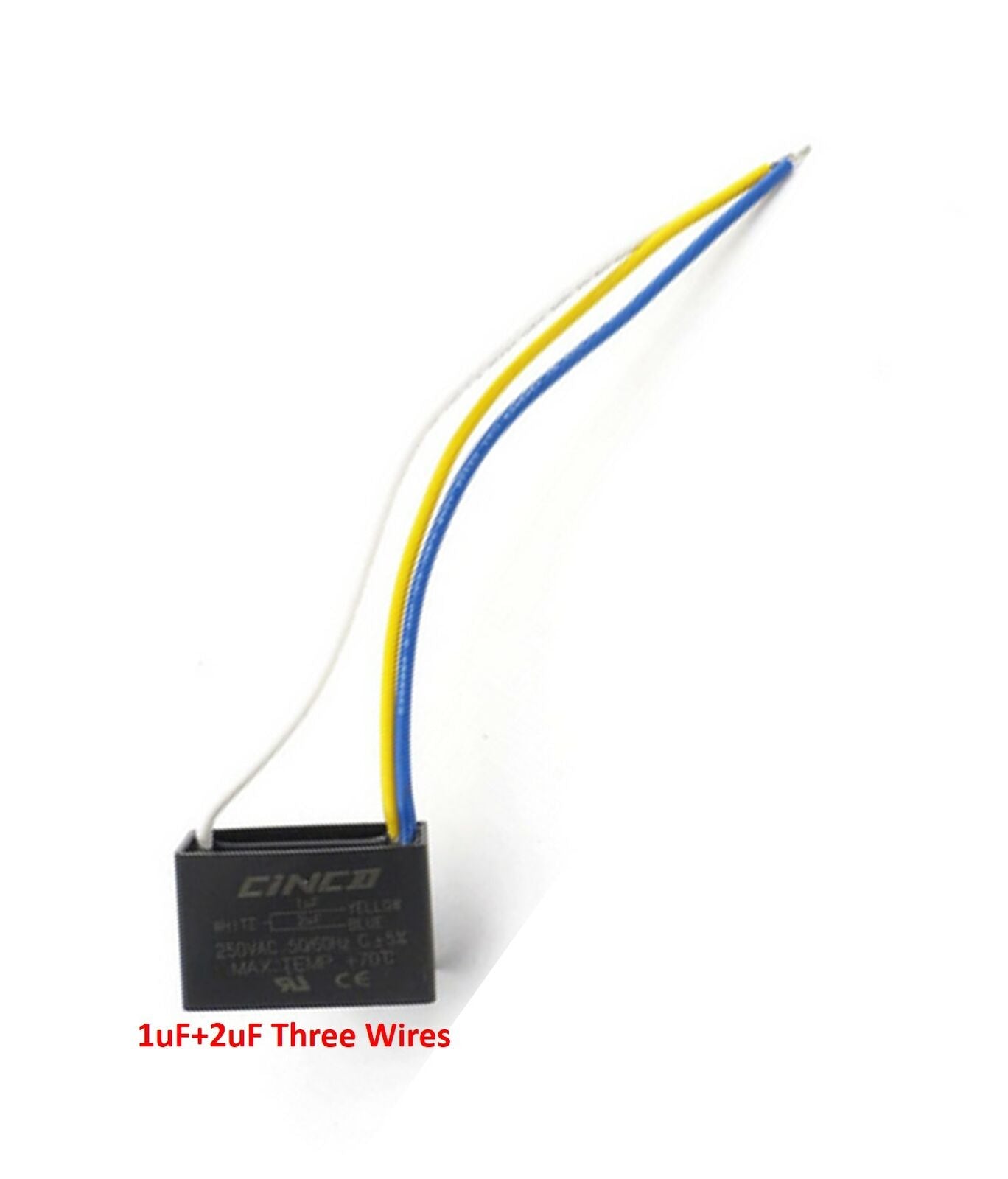

- 1uF+2uF Three Wires

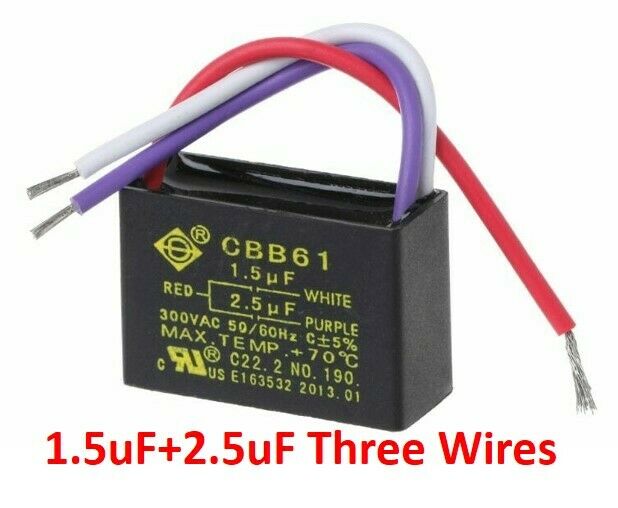

- 1.5uF+2.5uF Three Wires

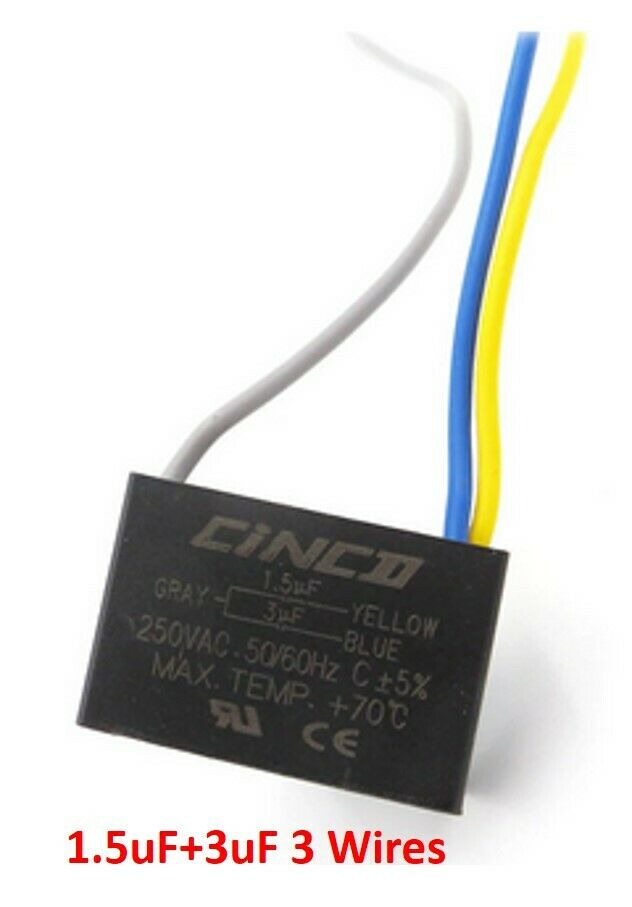

- 1.5uF+3uF 3 Wires

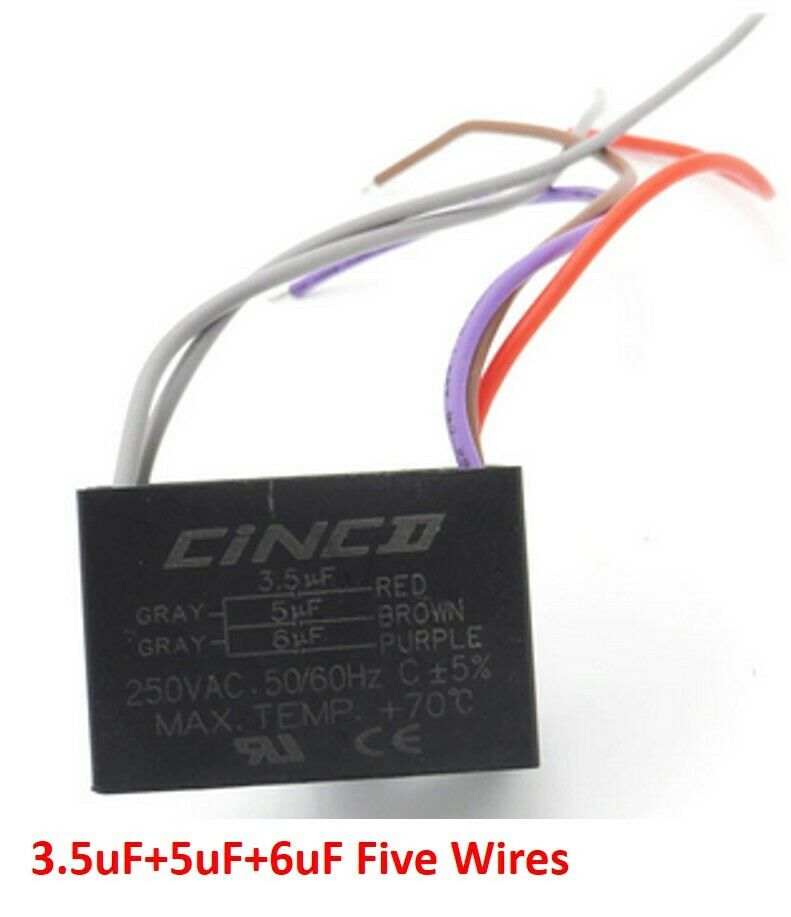

- 3.5uF+5uF+6uF Five Wires

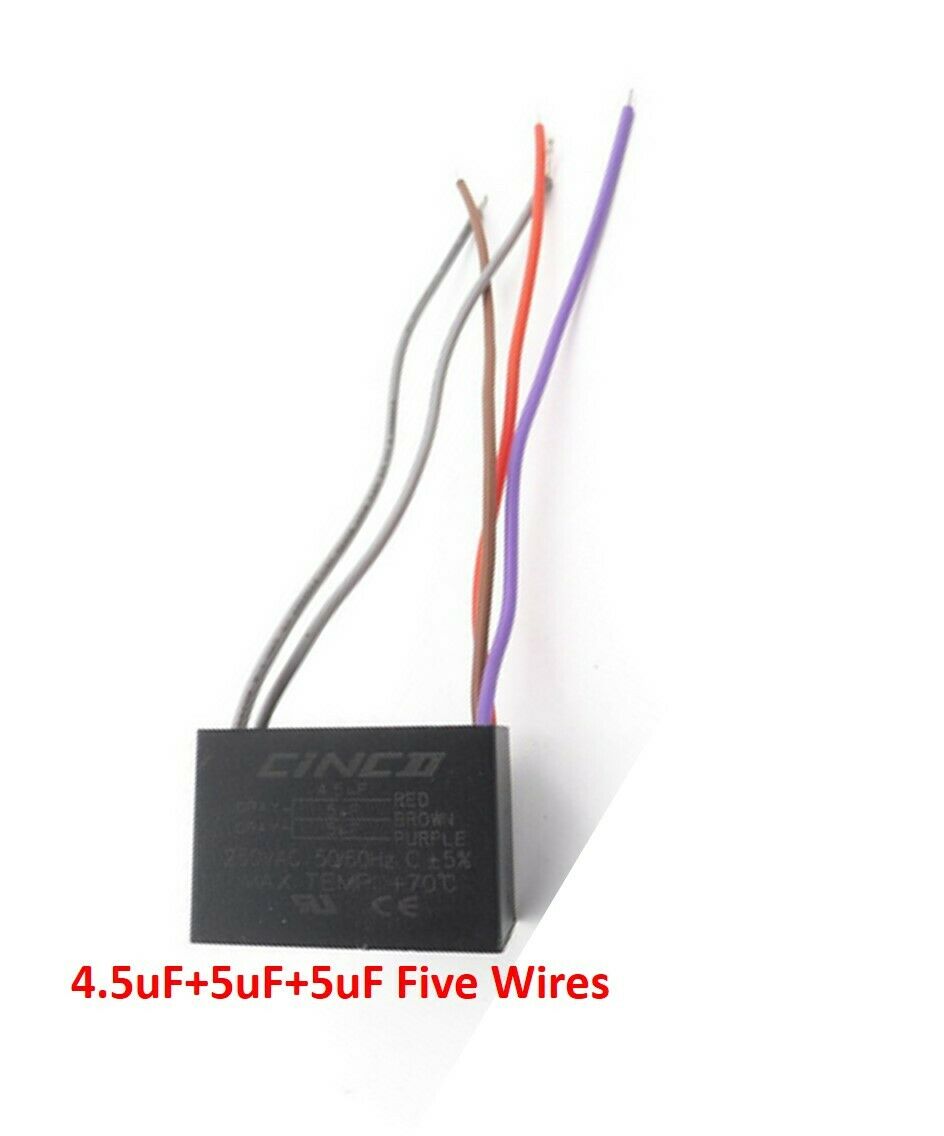

- 4.5uF+5uF+5uF Five Wires
MUST READ BEFORE PLACING ORDER:
- 1 or 2 pcs will be sent in envelop with stamps and it is not be trackable....Â
- Usually it is delivered smoothly but in some cases Australia Post may ask to pay extra shipping..
- You accept the risk of pay extra shipping by selecting free shipping option...Â
 For peace of mind, we strongly suggest selecting parcel shipping option.. Order will be trackable...  Â
