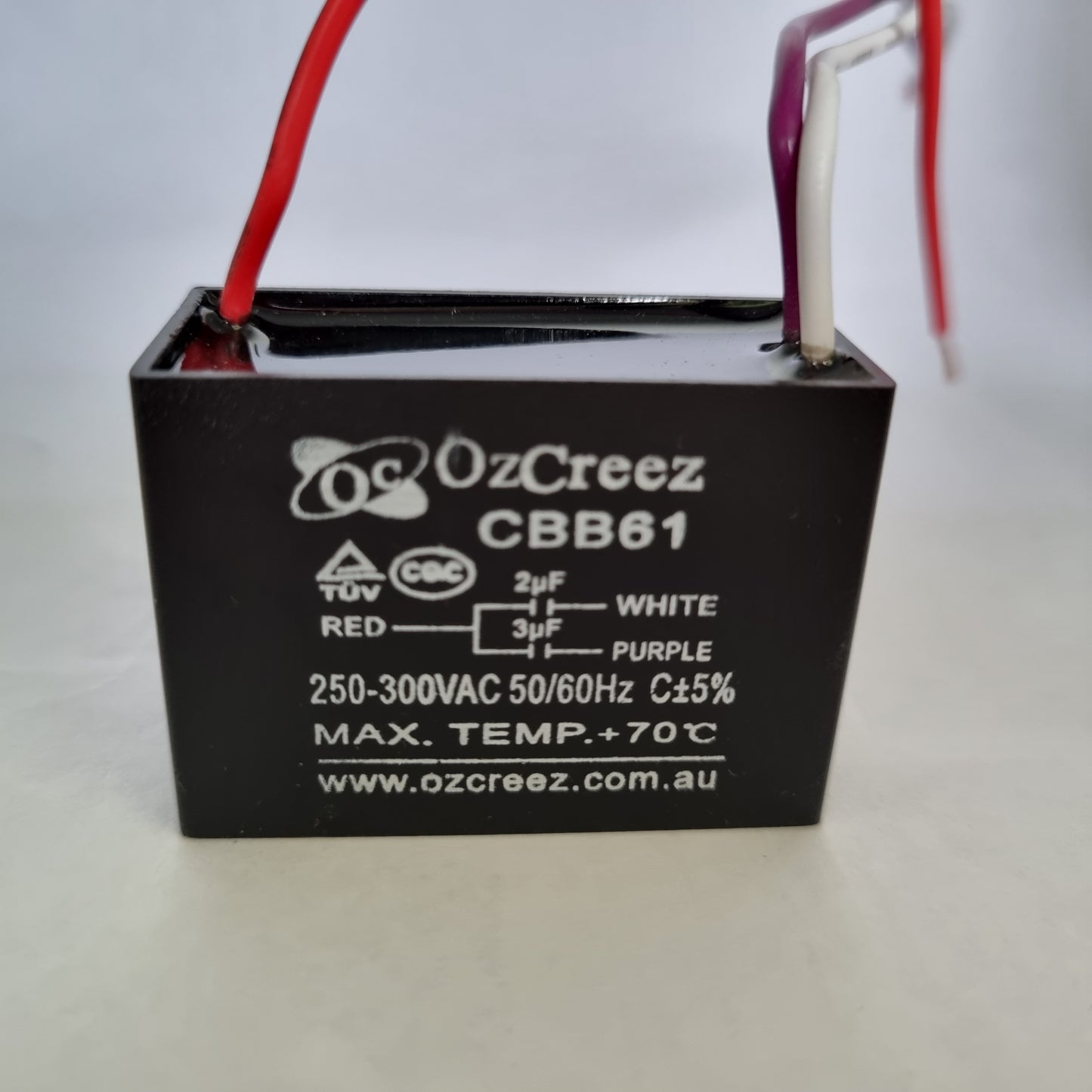

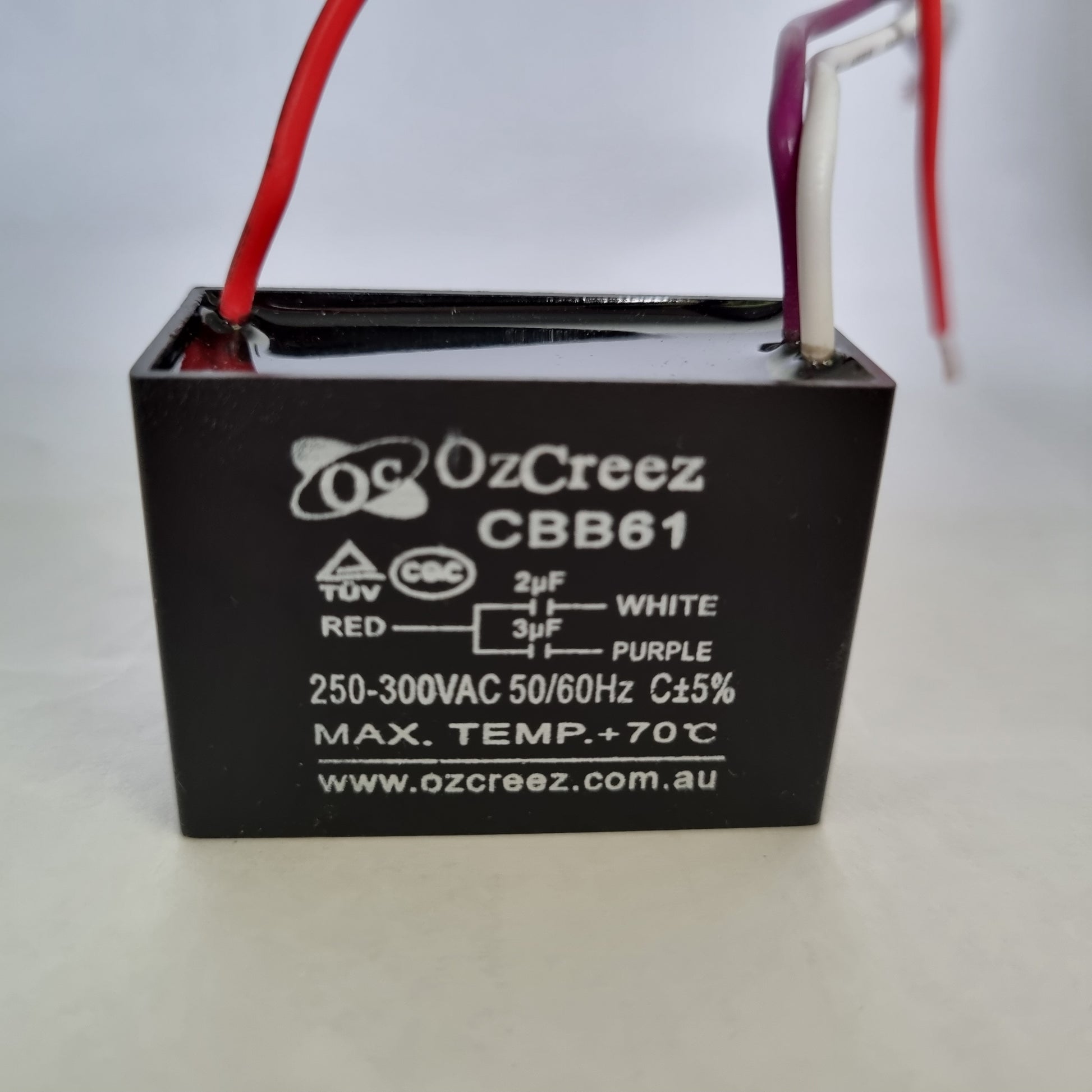

CBB61 2+3uF 3 Wires Fan Starting Capacitor For Ceiling Fan, Exhaust Fan, Dynamo-motor, Hood Fan Capacitor
Australian Brand Compliant with many International Quality and Safety Standards
CBB61 AC motor run capacitor can be used in an electric motor under lower starting electric current. It helps to produce higher starting torque. It is commonly used in in single phase motor/fan.
Features:
- Small volume, light weight, low loss, anti-overvoltage shock, excellent electrical performance and long service life.
- Anti-explosion design, safe and reliable to use
- Self-Healing
- Small loss and high insulation resistance
- Specially designed Self-healing (SH) model and stable performance
- Non-polarized, easy to connect with 2-wire, can be connected in any order.
Application:
-
Suitable for starting and running for mono- or single phase motors with power supply AC 50/60Hz Rated at 250-300V AC rated voltage
-
Used for range of applications: Ceiling Fan, Exhaust Fan, Dynamo-motor, Hood, Washing Machine, Home Appliance etc.
Specifications:
- Model: CBB61
- Type: Polypropylene Film Capacitor
- Material(External): Plastic
- Tolerance: ±5%
- Rated Frequency: 50 Hz or 60 Hz, 50/60Hz
- Rated Voltage: 250-300V AC
- Cable Length: 10 cm (approx.)
Package Includes :
Capacitor Size/Dimensions: Allow 1-3mm error due to manual measurement, Please make sure you do not mind before you bid.
Size/Dimension:
