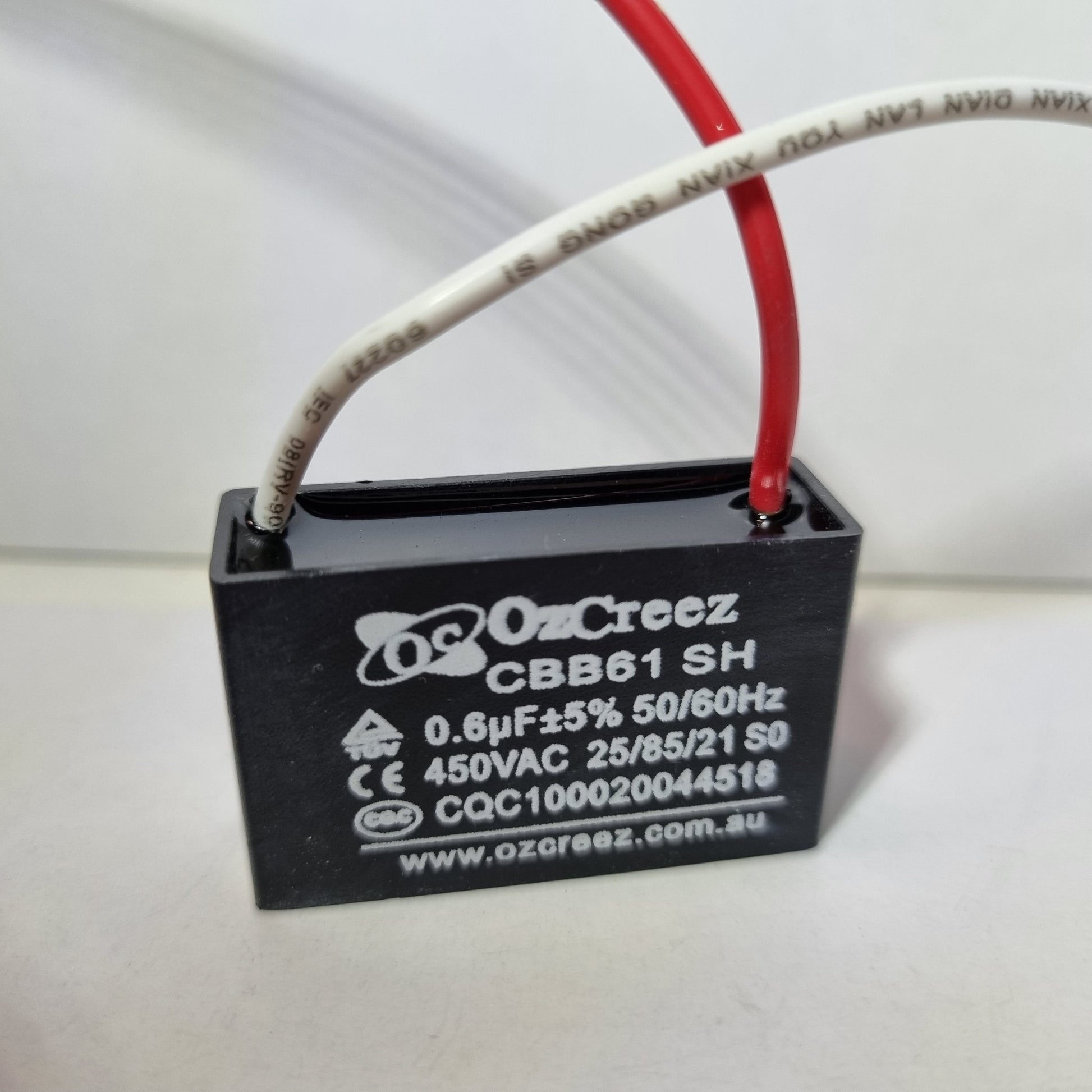

CBB61 0.6uF 450V Capacitor Appliances Ceiling Fan Starting Capacitor - AU

CBB61 0.6uF 450V AC, 50/60Hz Fan Starting Capacitor For Ceiling Fan, Exhaust Fan, Dynamo-motor, Hood Fan Capacitor

Australian Brand Compliant with many International Quality and Safety Standards

CBB61 AC motor run capacitor can be used in an electric motor under lower starting electric current. It helps to produce higher starting torque. It is commonly used in in single phase motor/fan.

Features:

• Small volume, light weight, low loss, anti-overvoltage shock, excellent electrical performance and long service life.
• Anti-explosion design, safe and reliable to use
• Self-Healing
• Small loss and high insulation resistance
• Specially designed Self-healing (SH) model  and stable performance
• Non-polarized, easy to connect with 2-wire, can be connected in any order.

Application:

• Suitable for starting and running for mono- or single phase motors with power supply AC 50/60Hz Rated at 450V AC rated voltage

• Used for range of applications: Ceiling Fan, Exhaust Fan, Dynamo-motor, Hood,  Washing Machine,  Home Appliance etc.

Specifications:

• Model: CBB61
• Capacity: 0.6uF
• Type: Polypropylene Film Capacitor
•  Material(External): Plastic
•  Tolerance: ±5%
• Rated Frequency: 50 Hz or 60 Hz, 50/60Hz
• Rated Voltage: 450V AC
• Cable Length: 10 cm (approx.)
