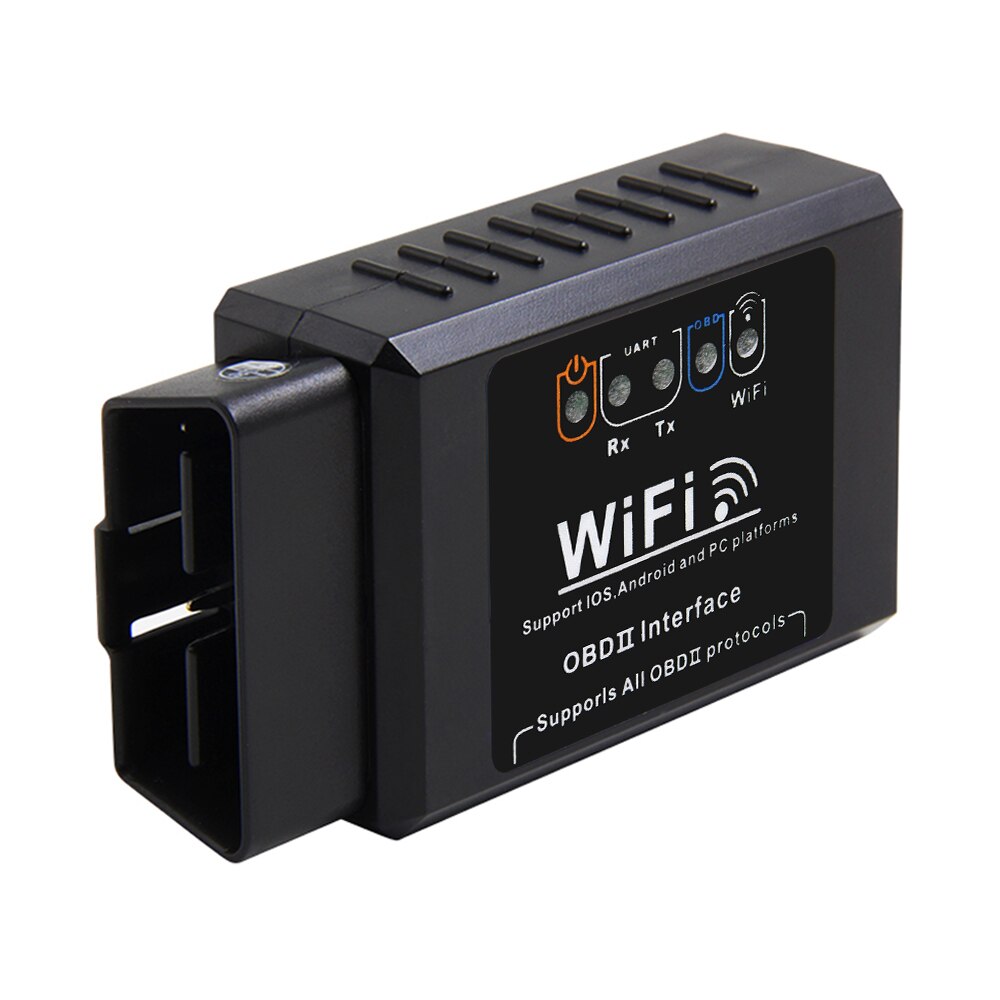

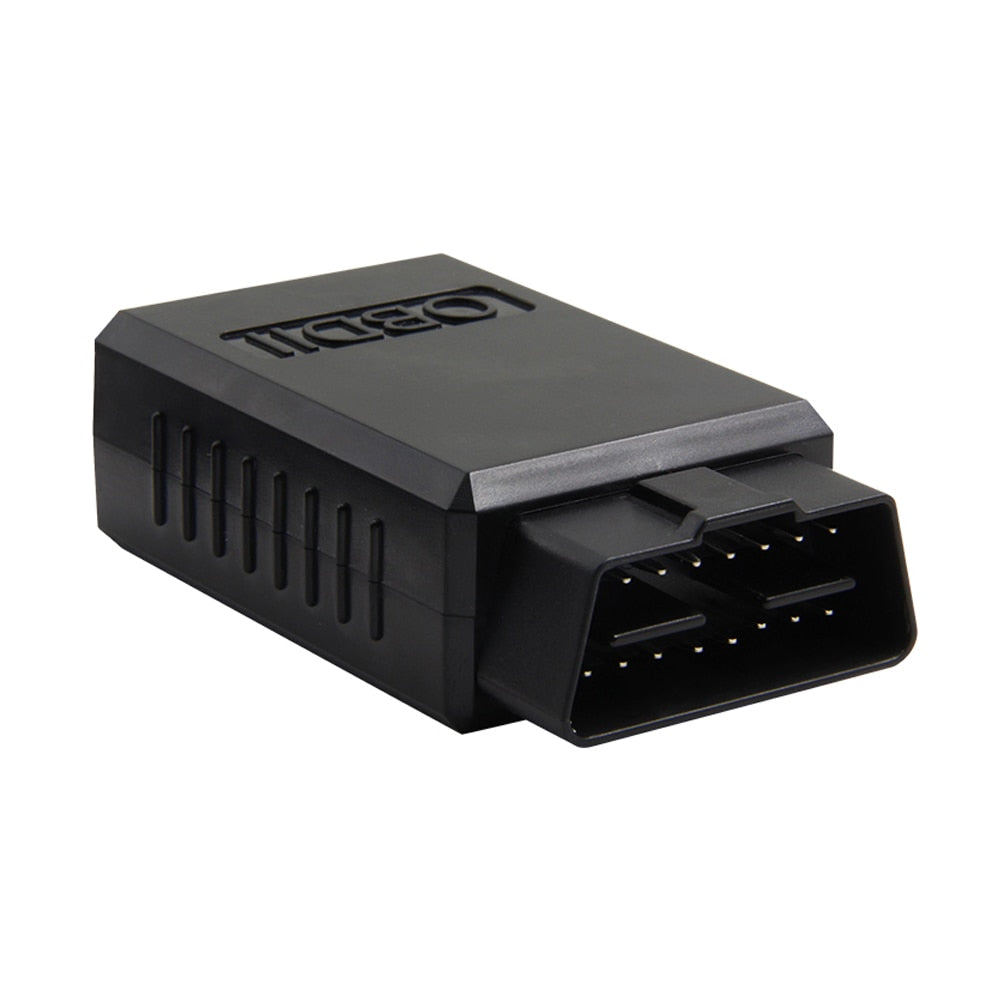

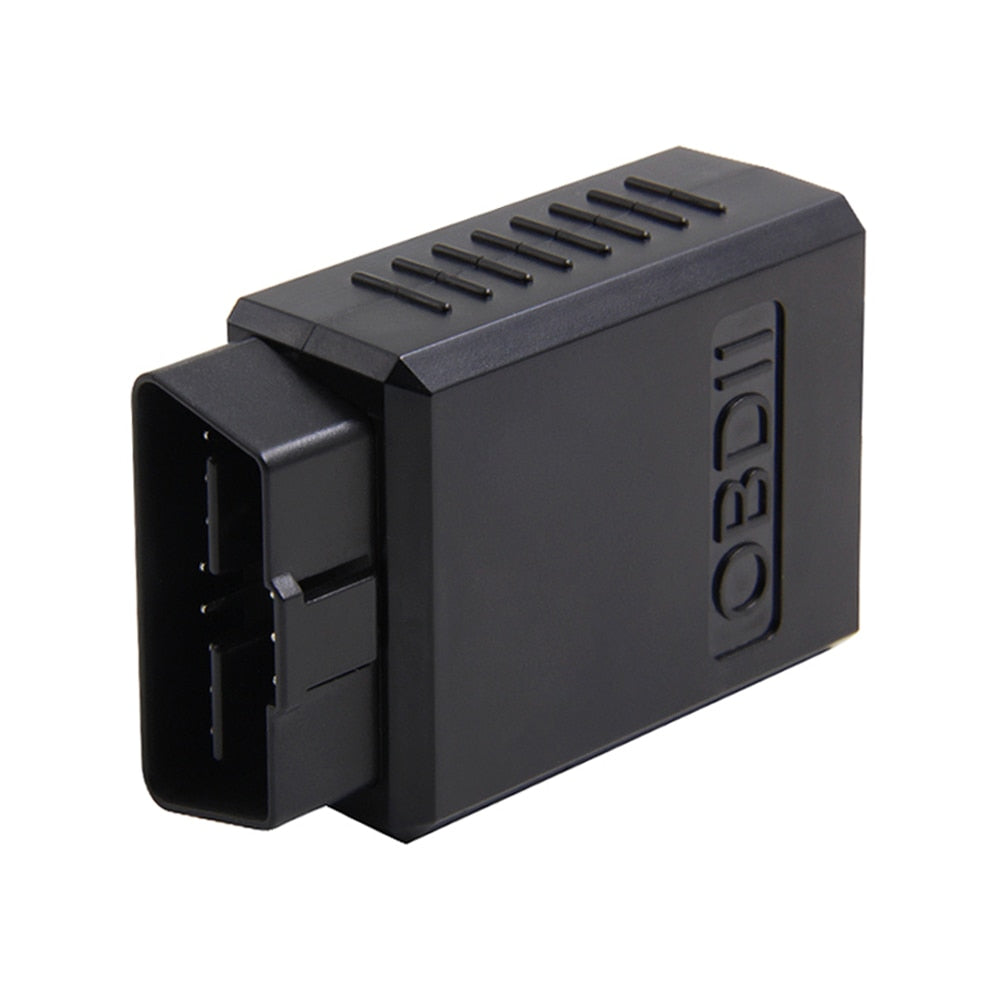

WiFi ELM327 OBD2 Car Scanner for iPhone Android PC Vehicle OBDII

WiFi ELM327 OBD2 Car Scanner for iPhone Android PC Vehicle OBDII Problem Engine Diagnostic Scan Read Up To 15,000 Datas

Mini OBD2 Wifi Scanner for Multi-brands CAN-BUS as same as ELM327 Wifi. Supports All OBD2 Protocol works on IOS, Android, Symbian, Windows, used to read diagnostic trouble codes, both generic and manufacturer-specific, and display your meaning (over 3000 generic code definitions in the database).

Mini OBD2 Wifi Scanner for Multi-brands CAN-BUS as same as ELM327 Wifi.

Top 5 Reasons To Get Mini OBD2 Wifi Scanner:

• Software Version: Latest Version(depending on software)
• Hardware Version: V1.5
• Works with all OBD-II compliant vehicles
• Wireless (Wifi)
• Support Four operating platforms (IOS, Android, Symbian, Windows)



Supported protocols:

1.SAE J1850 PWM (41.6Kbaud)

2.SAE J1850 VPW (10.4Kbaud)

3.ISO9141-2 (5 baud init, 10.4 Kbaud)

4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

5.ISO14230-4 KWP (fast init, 10.4 Kbaud)

6.ISO15765-4 CAN (11bit ID, 500 Kbaud)

7.ISO15765-4 CAN (29bit ID, 500 Kbaud)

8.ISO15765-4 CAN (11bit ID, 250 Kbaud)

9.ISO15765-4 CAN (29bit ID, 250 Kbaud)

Mini OBD2 Wifi Scanner Functions:



1: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

2: Clear trouble codes and turn off the MIL ("Check Engine" light)

3: Display current sensor data, including:

4: Engine RPM

5: Calculated Load Value

6: Coolant Temperature

7: Fuel System Status

8: Vehicle Speed

9: Short Term Fuel Trim

10: Long Term Fuel Trim

11: Intake Manifold Pressure

12: Timing Advance

13: Intake Air Temperature

14: Air Flow Rate

15: Absolute Throttle Position

16: Oxygen sensor voltages / associated short term fuel trims

17: Fuel System status

18: Fuel Pressure

19: Many others



Mini OBD2 Wifi Scanner Specifications:

SSID: WiFi_OBDII

• IP: 192.168.0.10
• Port: 35000
• Communication: WIFI
• Master Chip: ST
• Support System:for IOS, for Android, Symbian, Windows
• Working Voltage: 9v ~ 16v
• Working Current: 65mA
• Standby Current: 45mA
• Operating temperature: -40 ℃ ~ 85 ℃
• Working Humidity: less than 60%

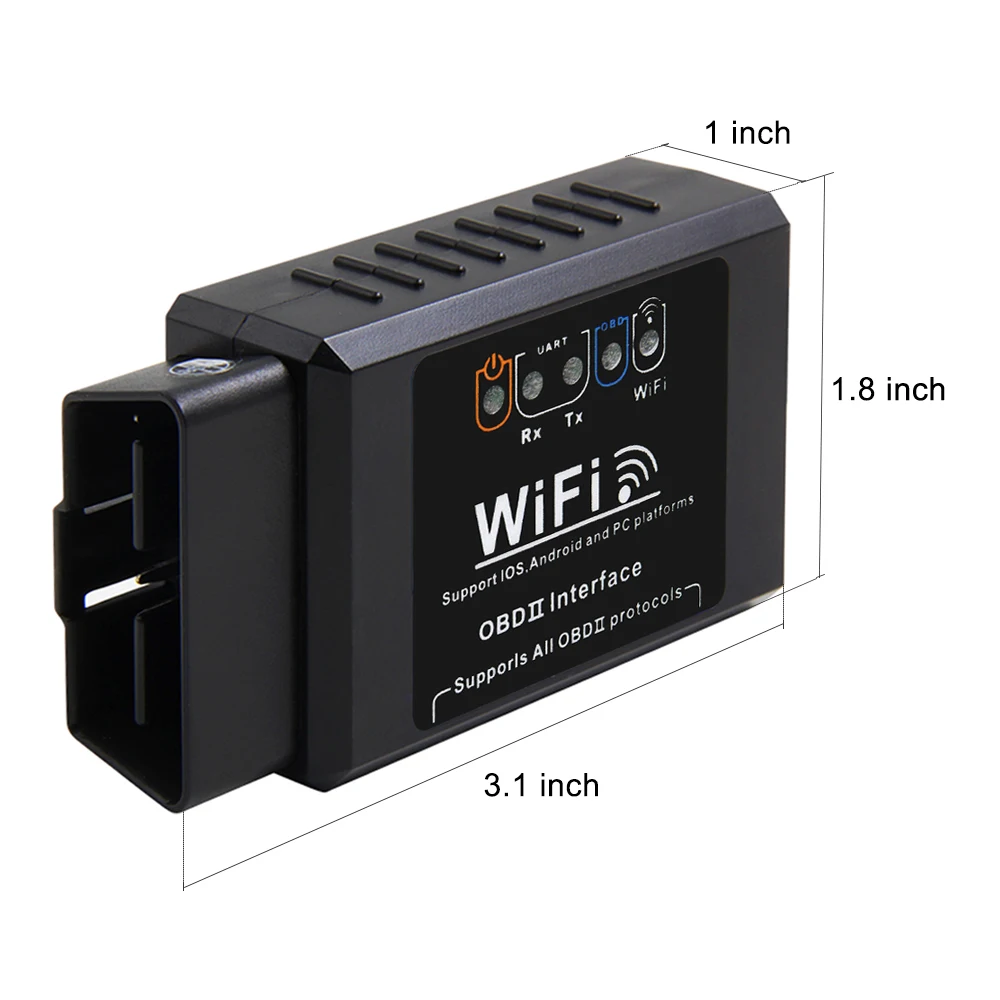

• Size: 45mm * 25mm * 75mm

Compatible systems:

Software support platform: Windows XP, Windows 7/8, for IOS, for Android, Symbian.

Compatible software:

• Window: ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.
• IOS: Auto Doctor, Mini OBDII

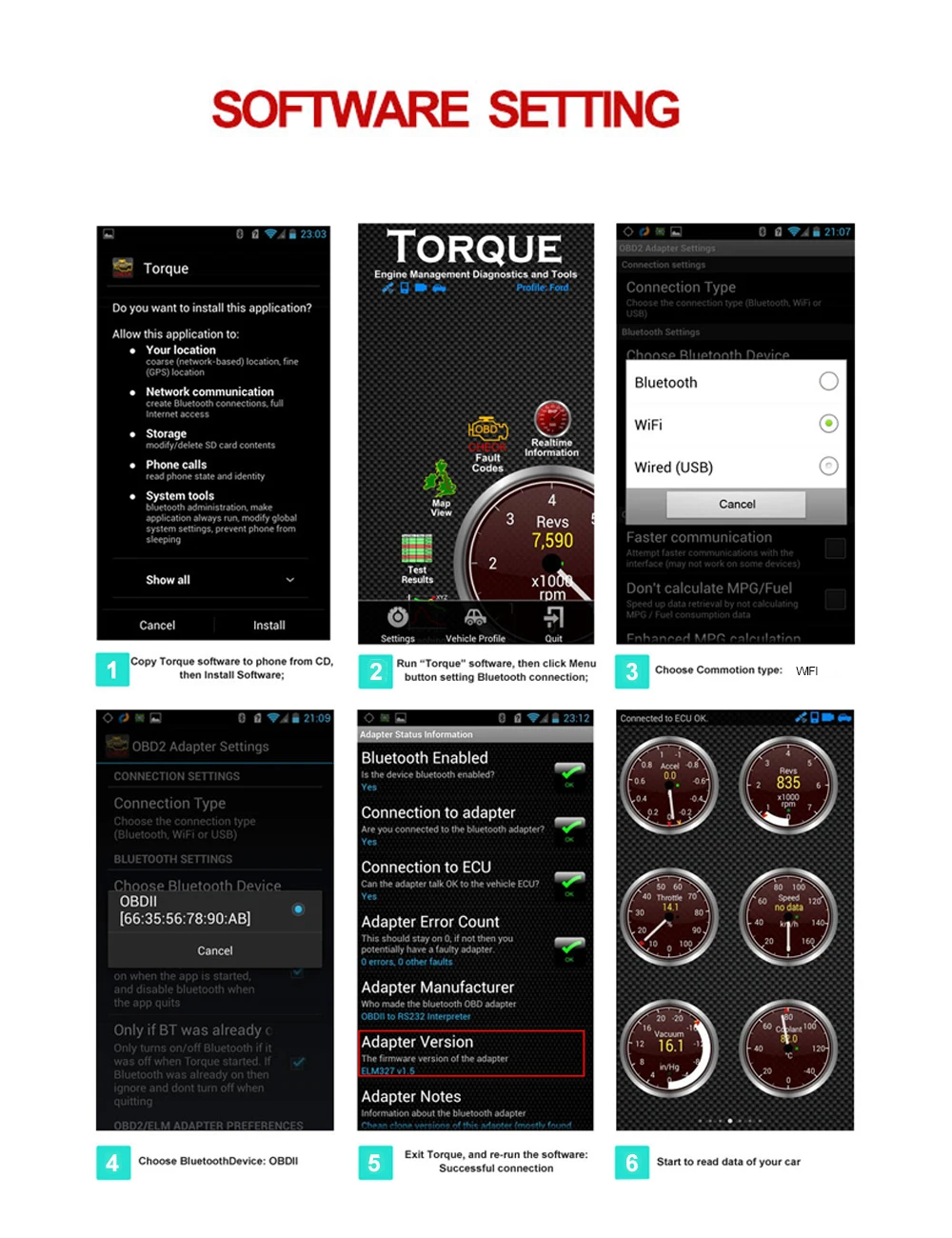

• Android: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, etc.
• Symbian: OBDScope
